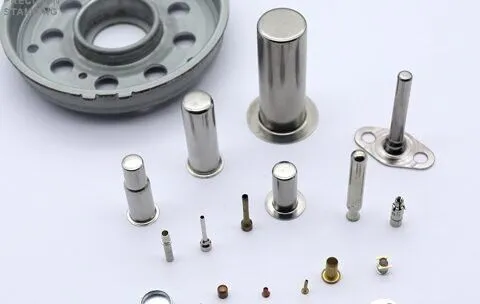

Deep drawing is a widely used process in sheet metal stamping, and it is known for creating precise, complex shapes from flat sheets. This technique involves pulling a metal sheet into a die using a punch, forming it into a desired shape without compromising its structural integrity. While deep drawing is highly efficient and cost-effective for large-scale production, it has challenges affecting quality, efficiency, and material usage. These challenges require careful consideration during design, material selection, and manufacturing to ensure successful outcomes.
This article explores the challenges of deep drawing for sheet metal stamping and how to effectively manage them.

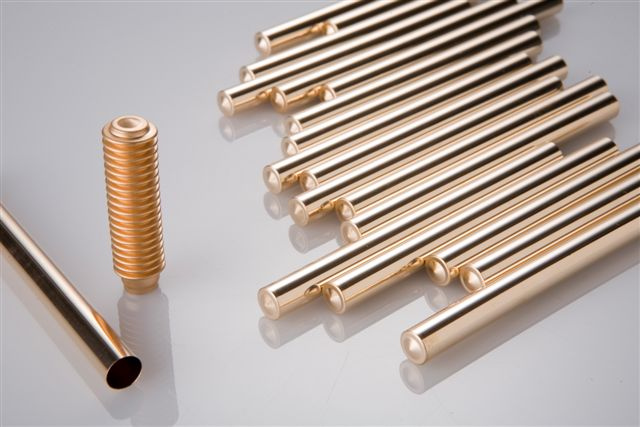

Challenges in Deep Drawing for Sheet Metal Stamping
Here are the common challenges in deep drawing for sheet metal stamping prototypes and parts:
Material Wrinkling
One of the most common challenges in deep drawing is material wrinkling. Excess material can accumulate at the edges as the sheet metal is drawn into the die, causing unsightly wrinkles. This issue often occurs when the draw ratio is too high or the material is improperly lubricated.
Tearing and Fracturing
Tearing can happen if the material is stretched too much during the process. When the metal exceeds its tensile strength, cracks or fractures can appear, ruining the part. To prevent this, it is important to choose materials with appropriate ductility and adjust the drawing force.
Springback
Springback refers to the tendency of metal to return to its original shape after forming. This is caused by the material’s inherent elasticity. It can lead to dimensional inaccuracies, requiring adjustments in tooling and techniques to account for this rebound.
Tool Wear
Over time, the tools used in deep drawing, such as punches and dies, can wear down, leading to inconsistent part quality. Frequent tool maintenance and replacement are necessary to maintain precision and reduce defects during production.
Inconsistent Material Flow
Poor material flow during deep drawing can result in uneven thickness and structural weaknesses in the final part. Factors like material hardness, lubrication, and the geometry of the die can influence how the metal flows and needs to be carefully managed.
High Setup Costs and Time
While deep drawing suits high-volume production, the initial setup costs can be significant. Designing and creating custom dies, along with precise adjustments to the machinery, can take time and investment.
Difficulties with Certain Materials
Some metals, particularly high-strength steels, and alloys, are challenging to draw deep due to their deformation resistance. These materials often require special tooling, lubrication, or pre-heating to ensure they can be drawn successfully.
Managing Wrinkling and Tearing During Drawing
Here’s how to reactively manage wrinkling and tearing during drawing:
Optimizing Die Design
Proper die design is crucial in minimizing wrinkling and tearing. Manufacturers can reduce the chances of material bunching up or stretching too thin by ensuring the die is well-shaped to guide material flow and applying proper venting.
Material Selection
Choosing the right material plays a significant role in preventing defects. Ductile materials like mild steel or aluminum are less prone to tearing because they can stretch more without breaking. Additionally, selecting materials with consistent thickness helps reduce the risk of wrinkles during the drawing process.
Applying Adequate Lubrication
Lubrication helps reduce friction between the sheet metal and the die, making the drawing process smoother. Proper lubrication ensures a more controlled material flow, reducing the likelihood of wrinkling at the edges. It also helps minimize tearing by allowing the material to stretch without excessive force.
Controlling the Drawing Speed
The speed at which the metal is drawn into the die can impact wrinkling and tearing. Slower drawing speeds give the material more time to flow evenly, while fast speeds can lead to uneven material distribution, causing wrinkles or strain that leads to tearing. Balancing speed with proper tooling helps manage these issues.
Using Blank Holders
A blank holder, which applies pressure on the material to keep it in place, is essential for controlling wrinkles. Applying sufficient force along the edges ensures the material doesn’t move too freely, preventing it from gathering at the die entry and creating wrinkles.

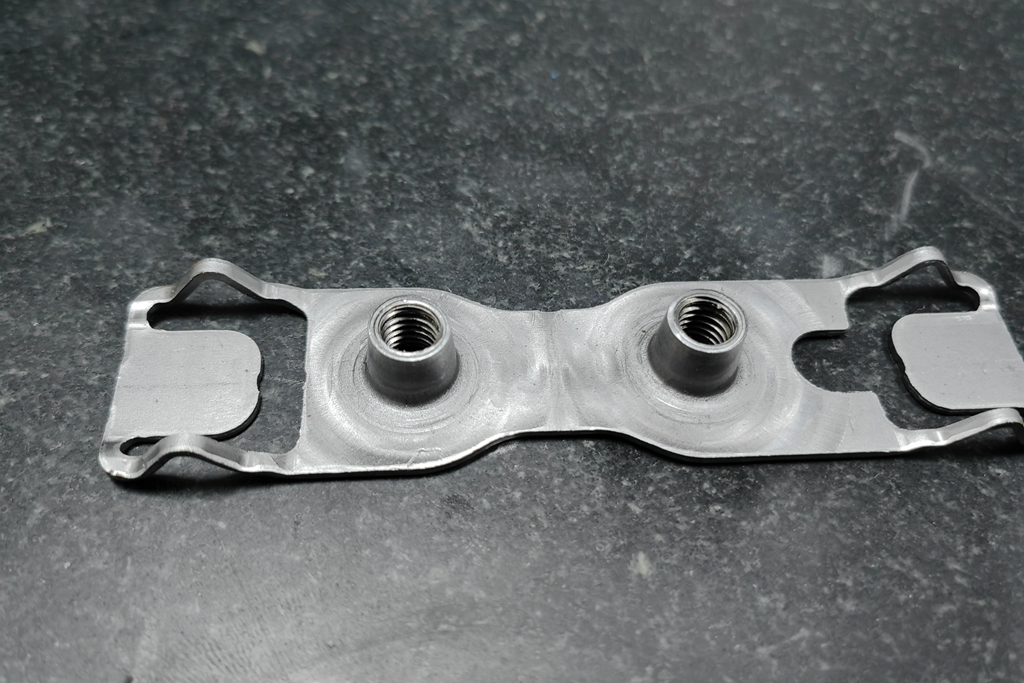

Adjusting Blank Holder Pressure for Uniform Shapes
Here’s how to adjust blank holder pressure to get uniform shapes:
Understanding Blank Holder Function
The blank holder plays a vital role in the deep drawing process. It applies pressure around the edges of the metal sheet to prevent it from moving too freely, ensuring the material flows evenly into the die. This pressure helps control the material’s deformation, preventing wrinkles and guaranteeing a uniform shape.
Finding the Right Pressure Balance
Applying too much blank holder pressure can restrict the material’s flow, leading to tearing or failing to form the desired shape. On the other hand, insufficient pressure allows the material to shift or wrinkle, resulting in an uneven part. The key is to find a balance that supports material flow without overconstraining it.
Material Thickness Considerations
Thicker materials require more blank holder pressure to keep them in place, while thinner materials may need less pressure to avoid excessive deformation. Adjusting pressure based on the material’s thickness ensures that the metal flows smoothly and evenly into the die, resulting in consistent shapes.
Adjusting for Material Type
Different metals, such as steel, aluminum, or copper alloys, respond differently to blank holder pressure. Softer materials may require less pressure to allow more flow, while harder materials may need increased pressure to prevent wrinkling. Tailoring the pressure to the specific material type optimizes the forming process.
Pressure Profiles and Staging
In some cases, blank holder pressure may need to be adjusted during the drawing process. A gradual increase in pressure as the material moves into the die allows for smoother forming and helps maintain uniformity throughout the process. Staging pressure adjustments at key points in the draw can help avoid wrinkles and material tearing.
Using Pressure Sensors
Advanced techniques like pressure sensors allow for more precise control of blank holder pressure. Sensors monitor the material’s response and adjust the pressure in real-time, ensuring the material flows uniformly and preventing defects. This technology improves consistency and quality in deep drawing operations.
Using Lubrication to Reduce Friction and Wear
Lubrication is crucial in deep drawing. It reduces friction between the sheet metal and die to ensure smoother material flow and minimize tool wear. It also reduces heat generation, protecting both the equipment and the part. Proper lubrication extends tool life by reducing contact-related wear, lowering maintenance costs, and maintaining production precision.
Lubricants prevent galling, which can cause scratches and surface defects, by forming a protective barrier. They also improve material flow for uniform thickness and reduce issues like wrinkling or tearing. The choice of lubricant depends on the material, part complexity, and process requirements, including oil-based, water-based, or solid lubricants for specific applications.
Lubrication can be applied through spraying, dipping, or brushing, with automated systems ensuring consistent application in high-volume production. Manufacturers must also consider environmental and health impacts, opting for sustainable solutions without compromising efficiency or quality.
Applications Requiring Deep-Drawn Components
Here are the different applications that require deep-drawn components:
- Automotive Industry
Deep drawing is extensively used in the automotive industry to produce components like fuel tanks, body panels, and structural parts. The process’s ability to form complex shapes with high precision makes it ideal for manufacturing lightweight, durable components that meet safety and performance standards. - Aerospace Components
Deep drawing creates aircraft fuselage panels, engine components, and brackets in aerospace. The process allows for producing lightweight, high-strength components that meet strict performance and safety requirements, making it critical in this industry. - Consumer Electronics
Deep drawing produces casings and enclosures for consumer electronics, such as mobile phones, computers, and kitchen appliances. The ability to form thin, durable metal parts that protect sensitive components is a significant benefit in these applications. - Medical Devices
Medical device manufacturers use deep drawing to produce items like surgical instrument housings, diagnostic equipment enclosures, and implants. The precision and reliability of deep-drawn components are essential for ensuring the safety and effectiveness of medical devices. - Energy Sector
The energy sector, including oil and gas, relies on deep drawing for parts like pressure vessels, tanks, and heat exchangers. The ability to form thick-walled, high-strength parts that can withstand extreme conditions is critical in this field. - Household Appliances
Many household appliances, such as refrigerators, washing machines, and dryers, rely on deep-drawn components for structural parts and enclosures. This process ensures that parts are both cost-effective and durable for everyday use. - Furniture Manufacturing
Deep drawing is sometimes used in furniture manufacturing for components like metal legs, brackets, and other structural elements. The process provides a cost-effective solution for producing lightweight yet strong parts that contribute to the overall stability and aesthetics of the furniture.
Conclusion
Deep drawing is an essential manufacturing process that allows for the creating of complex, high-quality components across various industries. While challenges such as wrinkling, tearing, and material flow control can arise, they can be effectively managed through proper die design, material selection, lubrication, and pressure adjustments. From automotive and aerospace to medical devices and consumer electronics, deep-drawn components are integral to producing durable, precise sheet metal stamping parts that meet industry-specific standards. The versatility of deep drawing continues to make it a valuable technique for industries that demand high-performance components, ensuring its continued relevance in modern manufacturing processes.
