The differences are startling if we compare the manufacturing industry from a century ago to the market now. Previously, there were just one or two technologies for cutting and processing materials. The expertise of the labor primarily determined the quality of the final product. Today, numerous revolutionary cutting technologies and procedures are available. Choosing the perfect one can be difficult. Waterjet and EDM cutting are two of the most used cutting technologies.
Wire EDM, or wire electrical discharge machining, removes material with high precision. It can cut materials as thick as 15.75″ and draw up to 40 components with a single cut. In contrast, waterjet cutting employs a powerful stream of water mixed with garnet abrasives to cut through materials. It is perfect for high-temperature-sensitive materials and pieces with smooth, parallel edges.
This article looks at CNC waterjet vs EDM cutting and helps you decide which is best for your project needs.
What Is Wire EDM?
Wire Electrical Discharge Machining (Wire EDM) is a precision machining technology that uses electrical discharges, or sparks, to cut conductive materials. Unlike typical machining technologies, Wire EDM cutting employs an electrothermal process that generates electrical discharges between a thin, continuously fed wire electrode and the workpiece. These discharges generate high heat, melting and vaporizing the material in a controlled manner. Notably, there is no physical contact between the wire and the workpiece, resulting in less mechanical stress and distortion.
The significant components of wire EDM are the wire electrode, commonly composed of brass or copper, and the dielectric fluid, typically deionized water. The wire electrode is the cutting tool, held under continuous tension to assure precision, while the dielectric fluid functions as an insulator, coolant, and debris remover, washing away eroded material and cooling the workpiece. The workpiece must be made of electrically conductive material, such as steel, aluminum, titanium, or an alloy.
The Wire EDM process involves setting up the workpiece and positioning the wire electrode to initiate cutting. Electrical discharges occur between the workpiece and wire, generating localized high temperatures that melt and vaporize the material. The melted and vaporized material is flushed away by the dielectric fluid, creating precise cuts or shapes. The wire is fed from a spool, and its movement is controlled by CNC systems to achieve the desired shape and dimensions.
Wire EDM is well adapted to producing complicated shapes, curves, and fine details with great precision, making it excellent for tool and die manufacture, the aerospace and medical industries, and prototyping and production. The procedure has various advantages, including high precision, the removal of mechanical stress from the workpiece, and the capacity to machine hard and fragile materials. However, it has several disadvantages, such as slower cutting rates than other CNC machining methods, limited use of electrically conductive materials, and possibly high costs, particularly for short production runs.
What Is CNC Waterjet Cutting?

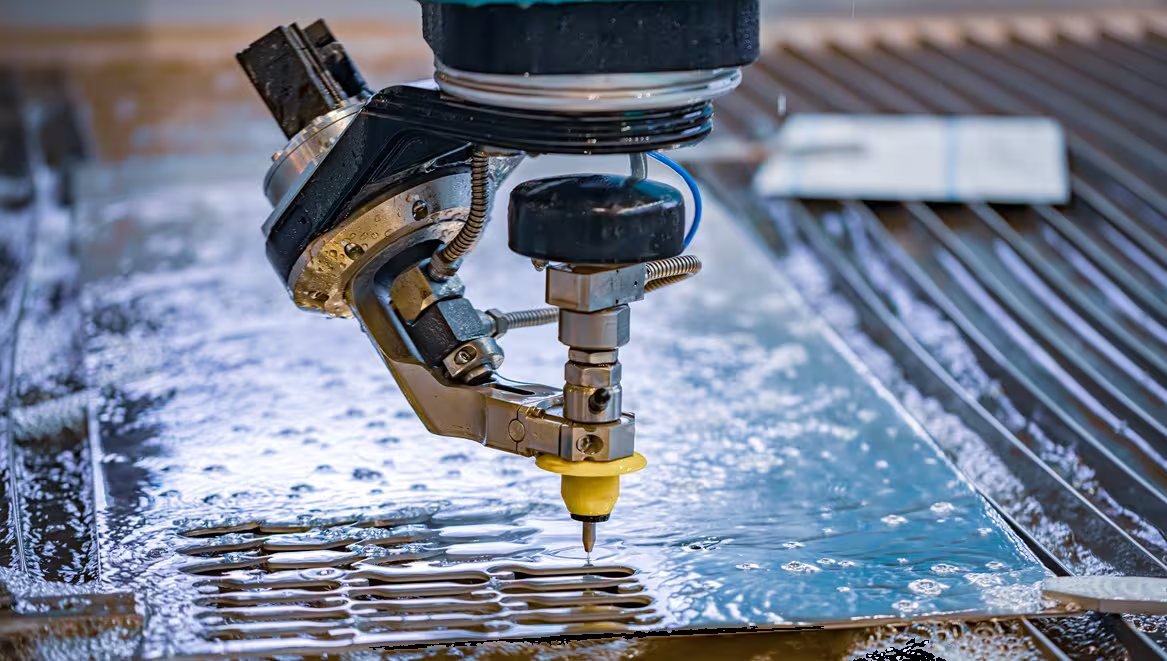

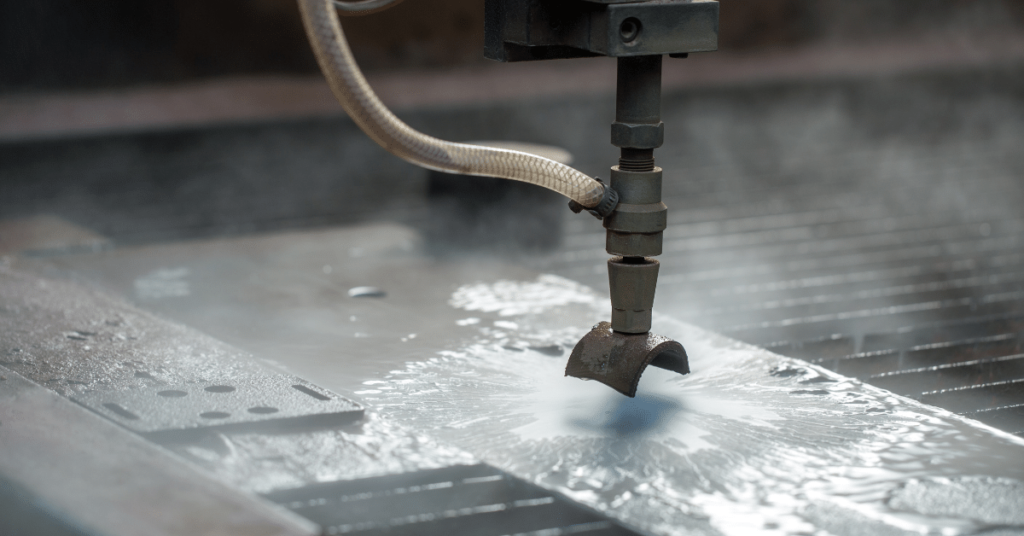

CNC Waterjet Cutting is a complex machining technique that uses a high-pressure jet of water, often paired with abrasive particles, to cut various materials. Computer Numerical Control (CNC) systems manage this procedure, providing precision and uniformity in the cutting operations.
CNC Waterjet Cutting uses a high-pressure pump pressuring water to 60,000 psi or higher. The pressurized water is then directed via a tiny nozzle, resulting in a high-velocity jet. To cut harder materials, an abrasive substance, such as garnet, is introduced into the water stream to increase its cutting power. The abrasive particles help to erode the material along the cutting path, allowing the machine to cut through resistant materials such as metals, ceramics, and composites.
One of the primary benefits of CNC Waterjet Cutting is its adaptability. Unlike other cutting technologies confined to specific materials, waterjet cutting can handle many materials, like metals (such as titanium, steel, and aluminum), stone, glass, plastics, and composites. The lack of heat in the cutting process, known as cold cutting, minimizes thermal deformation, warping, or hardening of the materials, which is especially useful for heat-sensitive materials.
The waterjet cutting process relies heavily on the CNC control system. It controls the movement of the cutting head, ensuring precise and detailed cuts that adhere to the specified pattern. This level of control enables the fabrication of complicated forms and detailed details with high precision and repeatability. Additionally, CNC Waterjet Cutting can produce excellent finishes, typically eliminating the need for secondary processing.
CNC Waterjet Cutting has various advantages. It can cut almost any material, leaves a clean edge with few burrs, and is environmentally beneficial because it emits no harmful fumes or trash. The method is also highly efficient, quickly cutting through thick materials. However, it has significant limits, including slower cutting speeds for particularly thick or rigid materials and the necessity to manage the abrasive waste generated during the cutting process.
Wire EDM vs CNC Waterjet Cutting for Metal: Which One Should I Choose
When picking between Wire EDM and CNC Waterjet Cutting for Metal, various considerations must be addressed, including precision, material type, thickness, cost, and project specifics. Both approaches have distinct advantages and are suitable for various applications.
Precision and Tolerances
Wire EDM is renowned for its high precision and ability to achieve tight tolerances. It can produce intricate shapes, fine details, and smooth finishes, making it ideal for applications requiring high accuracy, such as aerospace, medical, and tool and die industries. CNC Waterjet Cutting also provides excellent precision, especially with advanced CNC controls, but it may not match the ultra-fine tolerances of Wire EDM. Wire EDM is often the preferred choice for CNC metal cutting projects where extreme precision is crucial.
Material Versatility
Wire EDM and CNC Waterjet Cutting can handle a wide range of materials. However, Wire EDM is limited to electrically conductive materials like metals and alloys. CNC Waterjet Cutting, on the other hand, can cut any material, including metals, composites, stone, glass, and plastics. This versatility makes waterjet cutting a better option if you work with diverse materials beyond metals.
Material Thickness
Wire EDM is effective for cutting thick materials but may be slower when dealing with substantial thicknesses. CNC Waterjet Cutting excels in cutting thick materials, including metals up to several inches thick, without compromising quality. It might be more efficient if your project involves cutting very thick metal sheets or parts.
Heat-Affected Zones
One of the significant advantages of CNC Waterjet Cutting is its cold-cutting process, which does not generate heat. This means no heat-affected zones (HAZ), thermal distortion, or material hardening, making it ideal for heat-sensitive materials. In contrast, Wire EDM generates localized heat, which can affect the material properties around the cut. CNC Waterjet Cutting is advantageous for projects where maintaining the material’s integrity is essential.
Cost and Efficiency
The cost-effectiveness of both method depends on the specific project requirements. Wire EDM can be more expensive due to the specialized equipment and slower cutting speeds, but its precision and minimal material wastage can justify the cost for high-precision applications. CNC Waterjet Cutting is generally faster and more cost-effective for cutting large or thick metal sheets. It also requires less specialized equipment and maintenance compared to Wire EDM.
Environmental Impact
CNC Waterjet Cutting is environmentally friendly and does not produce hazardous fumes or waste. The process primarily uses water and, in some cases, biodegradable abrasives, making it a greener option. Wire EDM, while also clean, involves using dielectric fluids and generates fine metal particles, which need proper disposal.
Application Suitability
- Wire EDM: Best suited for high-precision, intricate cuts on conductive metals, such as in the aerospace, medical, and tool and die industries.
- CNC Waterjet Cutting: Ideal for versatile cutting applications across various materials, incredibly thick and heat-sensitive metals commonly used in the automotive, manufacturing, and architectural sectors.
Surface Finish
Due to its precise cutting mechanism, wire EDM is known for providing excellent surface finishes. This makes it ideal for applications where a smooth finish is crucial, such as mold and die manufacturing. CNC Waterjet Cutting also produces good surface finishes, but the quality varies depending on the material and the abrasives used. For projects demanding superior surface quality, Wire EDM might be more suitable.
Complexity of Cuts
oth methods can handle complex shapes, but Wire EDM is particularly adept at producing highly intricate and detailed geometries. It can create sharp internal corners and delicate features that might be challenging for other cutting methods. CNC Waterjet Cutting is also capable of complex cuts but may need help with excellent details compared to Wire EDM. Wire EDM offers a distinct advantage for projects requiring elaborate and detailed designs.
Conclusion
The exact needs of your cnc metal cutting project determine whether you should use Wire EDM or CNC Waterjet Cutting. Wire EDM has excellent precision and is best suited for complex features and tight tolerances, particularly in conductive materials. It is ideal for aerospace, medical, and tool and die manufacturing industries that require precision and fine surface finishes. CNC Waterjet Cutting is versatile and efficient, cutting many materials, including thick metals, without producing heat-affected zones. This approach applies to various industries, including automotive, manufacturing, and architecture.
If your project requires high precision and involves working with conductive metals, use Wire EDM. CNC Waterjet Cutting is superior for adaptability, efficiency, and low heat impact on various materials. To make the optimal option, consider your project’s material, thickness, and intended results.
